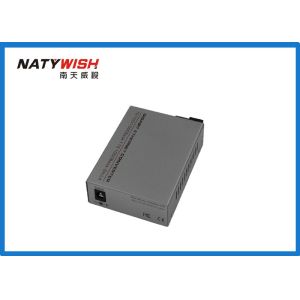

Gigabit Singlemode Single Fiber BIDI Media Converter 40KM 1310 /
1550NM
Product Description
The Gigabit media converter with external power supply are designed to
transmit and receive 10/100/1000Mbps data over optical fiber. The
electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps
Ethernet rate without any adjustments. The optical interface
operates at a 1000Mbps Ethernet rate. Both are environmentally
hardened to operate in extreme temperatures. LED indicators are
provided for confirming equipment operating status.
10/100/1000Mbps Ethernet
10/100/1000 BASE-T/TX electrical port
1000 BASE-SX/LX optical port
Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps,
full duplex or half duplex data.
Optical port supports 1000Mbps full duplex data
Automatic MDI/MDI-X crossover
Distances up to 2km for Multi mode;Up to 120km for Single mode
Voltage transient protection on all power and signal input.output
lines provides unconditional protection from power surges and other
voltage transient events
No in-field optical adjustments required
LED Indicators
Key Features:
With WDM technology, single fiber, double utilization rate of fiber
optics
Single fiber media converter must be used in pairs, saying TX
with1310nm, FX with 1550nm or TX with 1550nm, FX with 1310nm or
1490nm
With 1310nm/1550nm or 1310nm/1550nm or 1490/1550nm DFB single fiber
optical-electronic-integration module providing stable and reliable
performance
10/100/1000M auto-adaptation environment, convenient for network
upgrading
With distinct HIC solution, low-temperature-rise chip, no need of
cooling system, realization of flow control, decrease of broadcast
storm
With famous brand optical-electronic-integration module providing
excellent optical and electrical properties to ensure reliable data
transmission and long working life
Supporting broadcast filtering, address auto-learning and
auto-updating, and store-and-
forward operating mechanism
Supporting full-duplex flow control or half-duplex back pressure
working pattern, along with Auto-negotiation
Single RJ-45 electrical port NIC/HUB, auto cross-identification,
link to computer network cards or switches or HUB
Supporting the switches to choose between 10/100/1000Mbps store-and
forward or 1000M straight-through transmission pattern(distinct)
Supporting 1916 byte super data packet transmission
Providing indicator lamps for link-loss, electrical and optical
link diagnosing, dynamic data transmission and full/half duplex,
data rate
With more than 50,000 hours MTBF, complying with telecom operating
standard
Ultra low power dissipation(< 2.5W, Input:AC100 ~ 260V),low
heat, long-time stable work
Technical Description:
| Access Method: | 10/100/1000Mbps Ethernet |
Standard: | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,
IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-SX/LX Gigabit
thernet,IEEE802.1q,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | 1310nm/1550nm |
Distance: | Single Fiber: up to 80km(SM) or 2km(MM) CAT5: 100m |
| Port: | RJ45 Connector: Connecting with STP/UTP Cat5 Optical Connector:MM-SC or ST (fiber dimension: 50,62.5/125μm ) SM-SC or FC ( fiber dimension: 9/125μm ) Single Fiber SM-SC/ FC(fiber dimension: 9/125μm) |
Conversion Method: |
Media Conversion |
| Time Delay | <10us |
| BER: | <1/1000000000 |
LED Indicator | POWER (power), FX LINK (fiber link action), TP LINK1000 (twisted
pair connection 1000M), TP LINK100 (twisted pair connection 100M),
TP ACT (twisted pair packet forwarding action) |
| Power Supply | AC220 50/60Hz, DC 5V1A(external power) or DC 48V |
Power Dissipation: |
<5W |
Operating Temperature: | 0 ~ 50 ℃ |
| Humidity: | 5%~90% |
Storage Temperature: | -40~ 70 ℃ |
Storage Humidity |
5%~90% non-condescending |
Weight | 800g |
Dimension: | 94*71*26mm |
