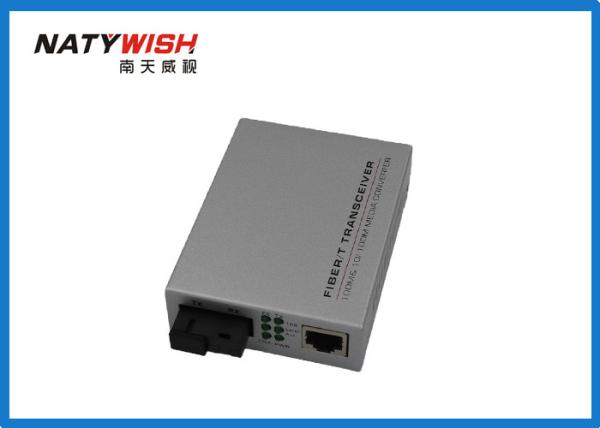

10 / 100M Fast Ethernet Media Converter 1310 & 1550nm single fiber
SM 20Km SC
Product Description
10/100M series are the fast Ethernet fiber optic media converter
which can convert two different transmission medium between network
cable and optical fiber. It supports 10/100Mbps bandwidth.
NTW Ethernet media converter can inter convert electrical signals
of 10Base-T and 100Base–TX twisted pairs with optical signals of
100Base-FX. It extends the network transmission distance from 100m
via copper cables to 120 km via fiber optical cable.
This product can use in pair or work with other device, it's widely
used in surveillance monitor, FTTH and other situation.
Features
1. Provide 100Mbps optical port and Ethernet port, network data can
switch between Ethernet and optical;
2. Adopts 1X9 optical transceiver, SC connector, use single mode
double fibers, transmission distance up to 120km;
3. Compatible with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX
Ethernet standard;
4. Support 10/100Mbps full/half duplex auto adaptive, support auto
MDI/MDIX;
5. Power adapter use aviation connector, more stable and resalable;
6. Dynamic LED indicator, real-time show the working status,
provide simple working status indication and trouble shooting;
7. Metal case design, convenient for desktop and rack-mount
installation
8. Extremely low power consumption (less than 5W), low heat,
reliable and stable performance, and long lifetime;
9. Options in single mode dual fiber, multi-mode dual f fiber, and
single mode in single fiber
10. Supporting Link Failure Alert (LFA): When optical fiber or UTP
is at fault, the converter could stop all the link(optional)
11. CE,FCC, RoHS compliance
Specifications
| Parameter | Specifications |
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast
Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p
QoS,IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 2 km; Dual-fiber single mode: 20/40/60/80/100/120 km Single fiber single mode: 20/40/60/80//100/120 km Category-5 twisted pairs: 100m |
| Port | One RJ45 por: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
| Conversion method | store-and-forward/cut-through |
| MAC address table | 1K |
| Buffer space | 1Mbit |
| Flow control | Full duplex: flow control; Half duplex: back pressure |
| Delay | Store-and-forward: 9.6μs cut-through: 0.9μs |
| BER | <19-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR, TXLink/ACT, FDX, FEF, FXLink/ACT, SPD |
| Power supply | DC5V 1A (external), AC220 15A/DC-48(internal) |
| Power consumption | <5W |
| Operating temperature | -10~55℃ |
| Operating humidity | 5%~90% |
| Storage temperature | -40~70℃ |
| Storage humidity | 5% ~ 90% non-condensing |
| Dimensions | 71mm (W) * 94mm (D) * 26 mm (H) (external power supply) 140 mm (W) * 110 mm (D) * 40 mm (H) (internal power supply) 25 mm (W) * 152 mm (D) * 128 mm (H) (slide-in type) |
| Weight | 0.45kgs(external), 0.8kgs(internal) |
Optical parameters
MM 2Km | Fiber: 62.5/125, 50/125, 100/140μm |
| Output power: >﹣18dBm |
| Receiving sensitivity: <﹣31dBm |
| Distance: 0～2km or 0～5km |
| Connector: SC(standard)／FC(optional) /ST(optional) |
| Type: dual-fiber |
| Wavelength: 850nm/1300nm/1310nm |
| Fiber:9/125, 8.3/125, 8.7/125 or 10/125μm |
SM 20km | Distance: 0～20km |
| Output power:-13～﹣8dBm |
| Receiving sensitivity: <﹣34dBm |
| Connector: SC(standard)／FC(optional) /ST(optional) |
| Type: single-fiber / dual-fiber |
| Wavelength: 1310nm/1550nm(single-fiber),1310nm(dual-fiber) |
SM 40km | Distance: 0～40km |
| Output power:﹣11～﹣6dBm |
| Receiving sensitivity: < ﹣34dBm |
| Connector: SC(standard)／FC(optional) /ST(optional) |
| Type: single-fiber / dual-fiber |
| Wavelength :1310nm/1550nm(single-fiber),1310nm(dual-fiber) |
SM 60km | Distance: 0～60km (when less than 15km, use attenuator) |
| Output power:﹣5～0dBm |
| Receiving sensitivity: < ﹣36dBm |
| Connector: SC(standard)／FC(optional) /ST(optional) |
| Type: single-fiber / dual-fiber |
| Wavelength: 1310nm/1550nm(single-fiber),1310nm(dual-fiber) |
SM 80km | Distance: 0～80km (when less than 15km, use attenuator) |
| Output power:﹣8～-3dBm |
| Receiving sensitivity: < ﹣36dBm |
| Connector: SC(standard)／FC(optional) /ST(optional) |
| Type: single-fiber / dual-fiber |
| Wavelength: 1310nm/1550nm(single-fiber),1550nm(dual-fiber) |
SM 120km | Distance: 0～120km (when less than 15km, use attenuator) |
| Output power:﹣3～5dBm |
| Receiving sensitivity: < ﹣39dBm |
| Connector: SC(standard)／FC(optional) /ST(optional) |
| Type: dual-fiber |
| Wavelength: 1550nm |
