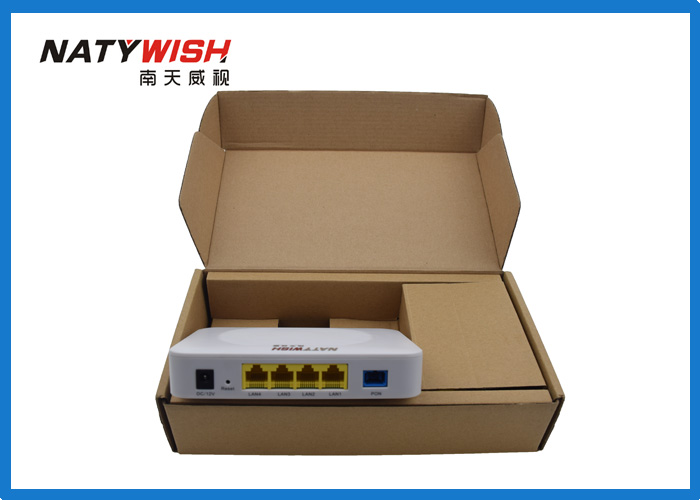

NTW-E174E1W ONU Wireless 4 LAN ports 1 PON FTTH optic receiver EPON ONU WiFi is
mainly designed for FTTH,FTTO application.
EPON Wireless 4 LAN ports 1 PON FTTH optic receiver EPON ONU WiFi
support 1000Base-PX20 standard with 1:64 maximum optical splitting
ratio and 20km distance, and provide 1uplink GE PON port.
Wireless 4 ports 1 PON FTTH optic receiver EPON ONU WiFi work
together with Baudcom OLT could realize flexible network structure
and maintenance and provide total FTTx solutions.
Wireless 4 ports 1 PON FTTH optic receiver EPON ONU WiFi has 1 PON
port ,1 10/100/1000BASE 3 10/100BASE-T ports and support WiFi.
.
Product Feature:
1. Meet IEEE802.3ah standard.
2. Transmission distance:20km.
3. Support data encryption, multicast, VLAN etc.
4. Support DBA.
5. Support automatic discovery / link detection / remote upgrade.
6. VLAN partitioning of ports and protocols.
7. Support broadcast storm suppression .
8. Different data ports are isolated from each other.
9. Support ACL,flexible manage different types of access data.
10. SNMP protocol,EMS unified network management, easy installation
and maintenance.
11. Provide alarm function,easy fault diagnosis.
Technical parameter
| Model | Parameter | Specification |
| Port | PON port | 1 EPON port, Meet 1000BASE-PX20 standard, Uplink and downlink symmetric,1.25Gbps, SC,single mode ,single fiber, Splitting ratio:1:64, Distance:20KM. |
| Electrical port | 1*10/100/1000M+3*10/100M ethernet port(self adaption), Full duplex/half duplex, RJ45electrical port ,support cross connect directly, Distance :100 meter, |
| Power supply | +12V DC power supply, External :12V 0.5A AC/DC adapter. |
| Performance specification | PON port | Wavelength :Tx1310nm Rx1490nm, Transmit optical power:-1～4dBm, Rx sensitivity:-27dBm, Maximum optical power:-3dBm. |
| Data transmission performance | PON port: downlink 980Mbps,uplink 950Mbps Ethernet :100Mbps Packet loss:<1*10E-12 Transmission delay:<1.5ms |
| business | 2 layers line speed switching Support VLAN TAG/UNTAG,VLAN switch Support port speed limit Support business priority Support broadcast packet suppression Support loop detection |
| Device management | Management | Through the OAM protocol,center OLT device unified manage,support
SNMP,TELNET,local management. |
| Management function | Status monitoring, configuration , alarm and log management . |
| Status indication | Indicated LED light | PWR: power supply OPTIN: optical signal LINK:registration LAN1~2: network port working state ETH1~2:network port working state WIFI:WIFI |
| physical characteristics | shell | plastic |
| Power supply and consumption | External DC 12V Power consumption:<4W |
| Size and weight | Device size:160mm(L) x 120mm(W) x 32.5mm (H) Device weight:0.2kg |
| Environment | Working temperature:0～50℃ Storage temperature:-40～85℃ Operating humidity:10%～90% non condensing Storage humidity: 5%～95% non condensing |
| WIFI parameter |
| model | Working mode | Routing and bridge mode |
| performance index | Speed rate | IEEE 802.11b: 11Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 135Mbps |
| Frequency range | 2.412 ~ 2.472 GHz |
| Channel | 13 channels.Can be configured to the United States, Canada, Europe,
Japan, China and other regional norms. |
| modulation mode | DSSS , CCK and OFDM |
| coding scheme | BPSK, QPSK, 16QAM and 64QAM |
| RF Receiving sensitivity | 802.11b:
-82dBm @ 1 Mbps; -80dBm @ 2 Mbps;
-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps
802.11g:
-82dBm @ 6 Mbps; -81dBm @ 9 Mbps;
-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;
-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;
-66dBm @ 48 Mbps; -65dBm @ 54 Mbps |
| RF maximum output power | 802.11b:
16.5 ±1dBm
802.11g:
13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;
15 ± 1dBm @ 6 ~ 36 Mbps
802.11n:
13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;
15 ± 1dBm @ 6 ~ 36 Mbps |
| Encryption mode | 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) |
Order information
| model | description |
| NTW-E174E1W | 1GE+3FE+WIFI EPON ONU |
